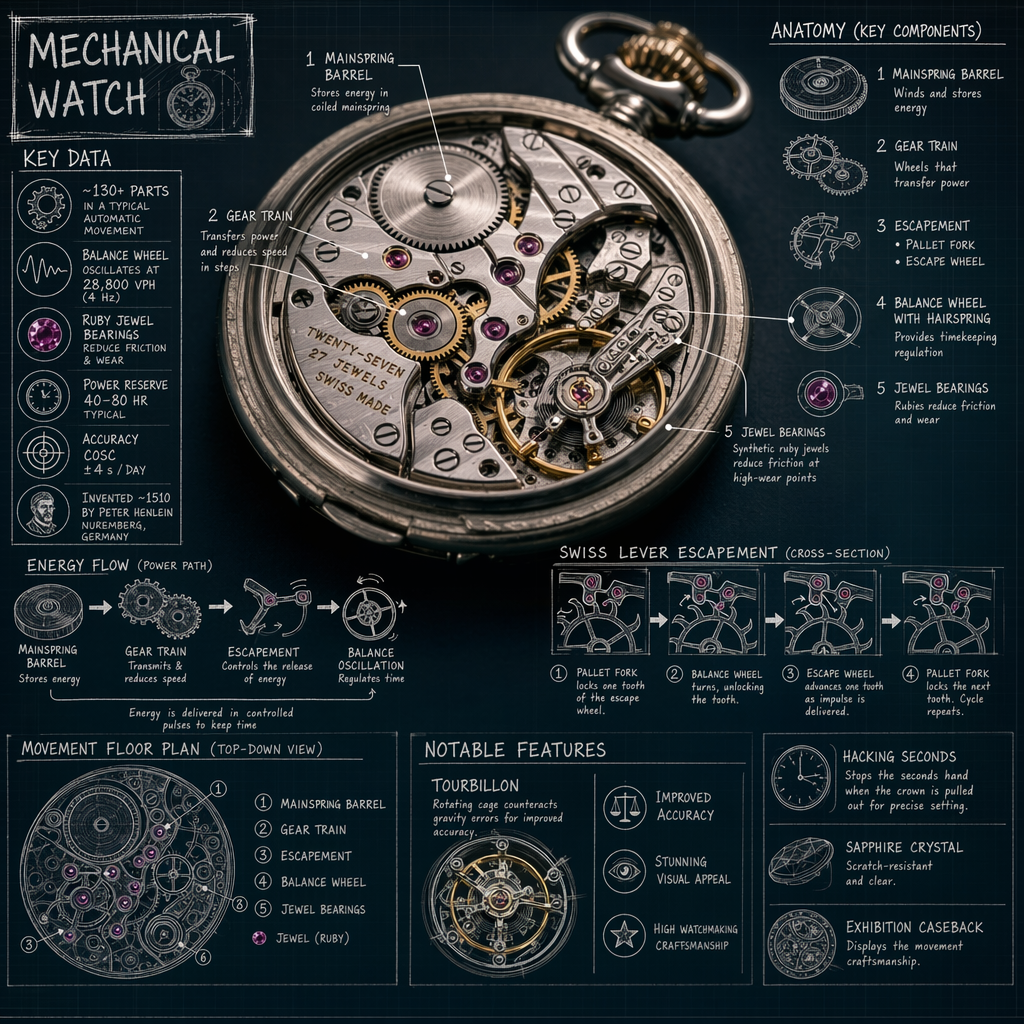

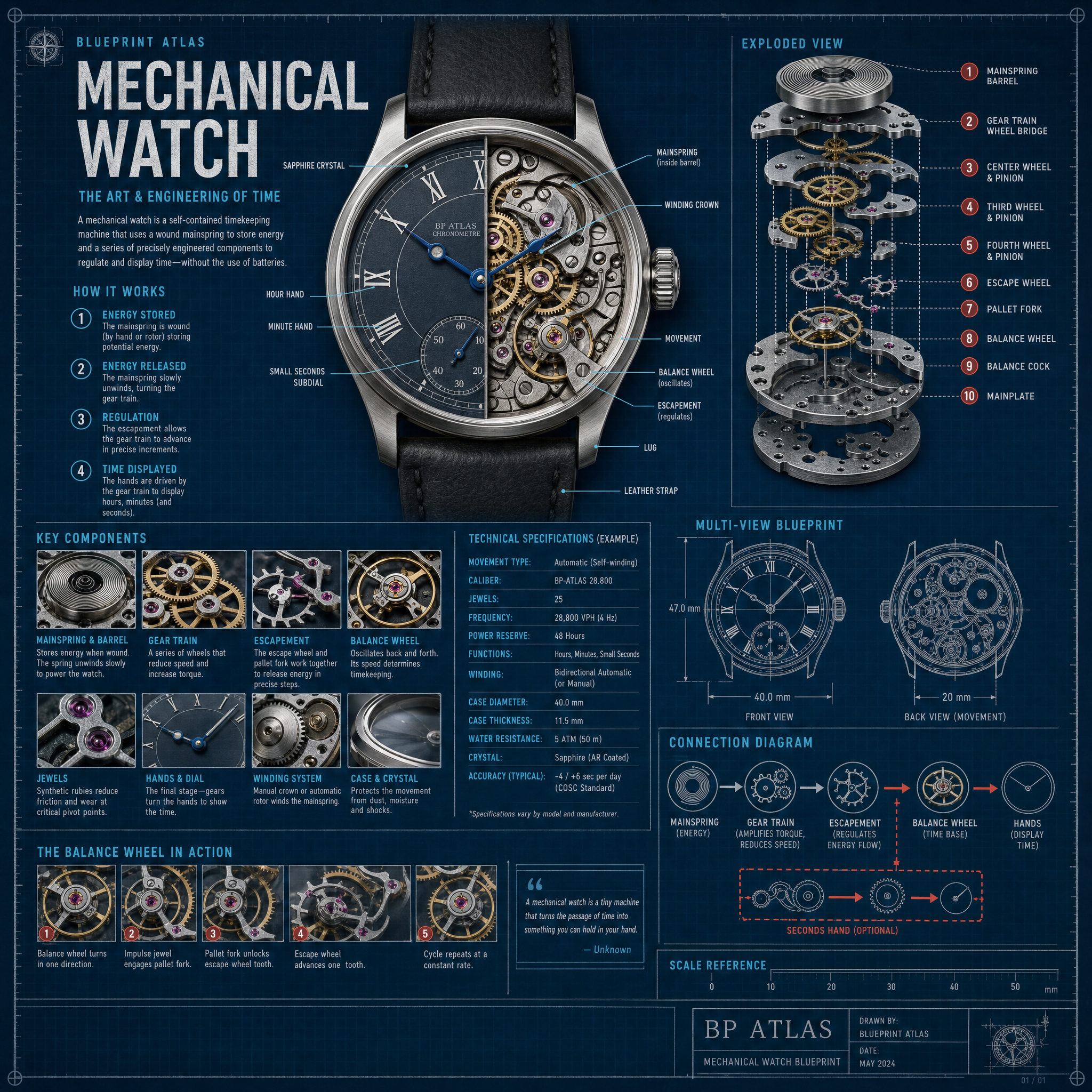

A mainspring stores mechanical energy; the escapement releases it in precise tick-tock pulses; the balance wheel counts them at four beats a second. No batteries involved, just five centuries of horology.

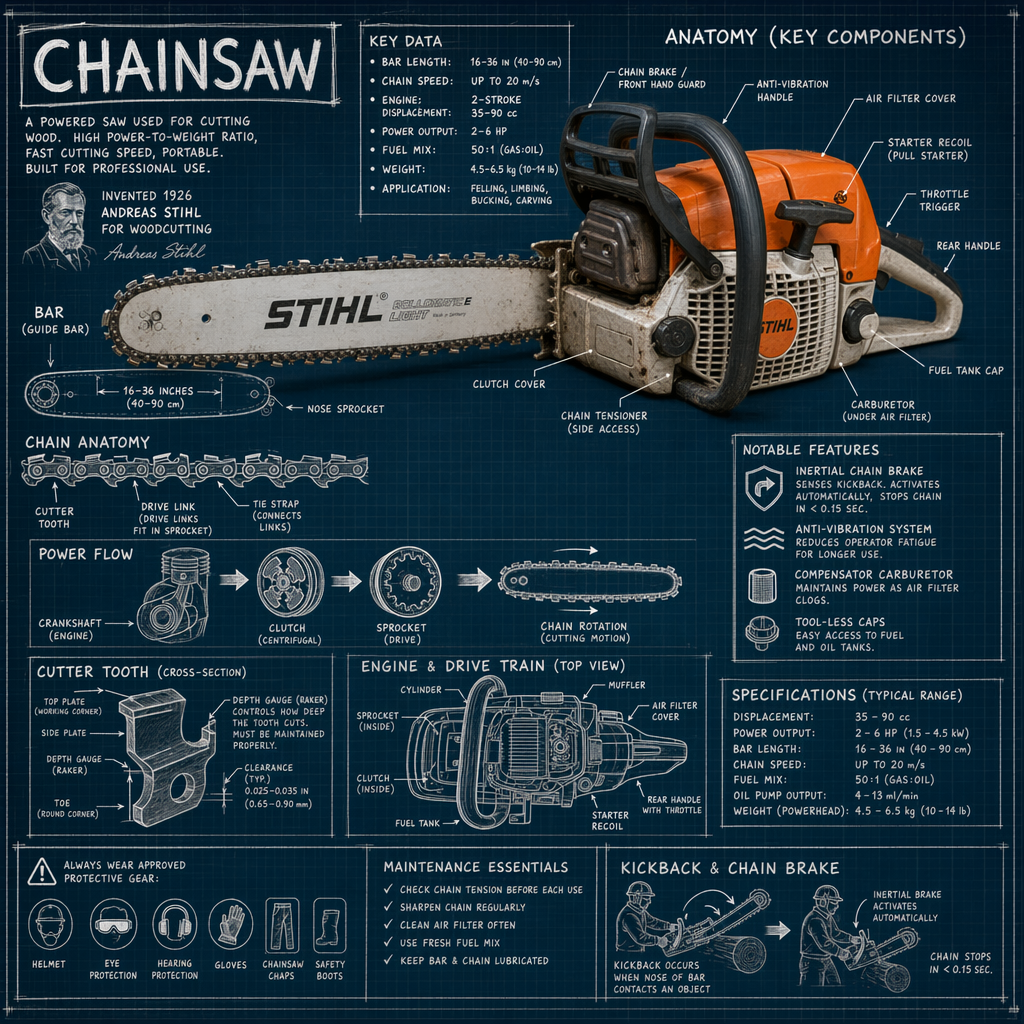

A 2-stroke engine drives a sprocket that launches a loop of cutter teeth around a guide bar at highway speeds. An inertial brake stops the chain in under 0.15 seconds the instant it kicks back at the user.

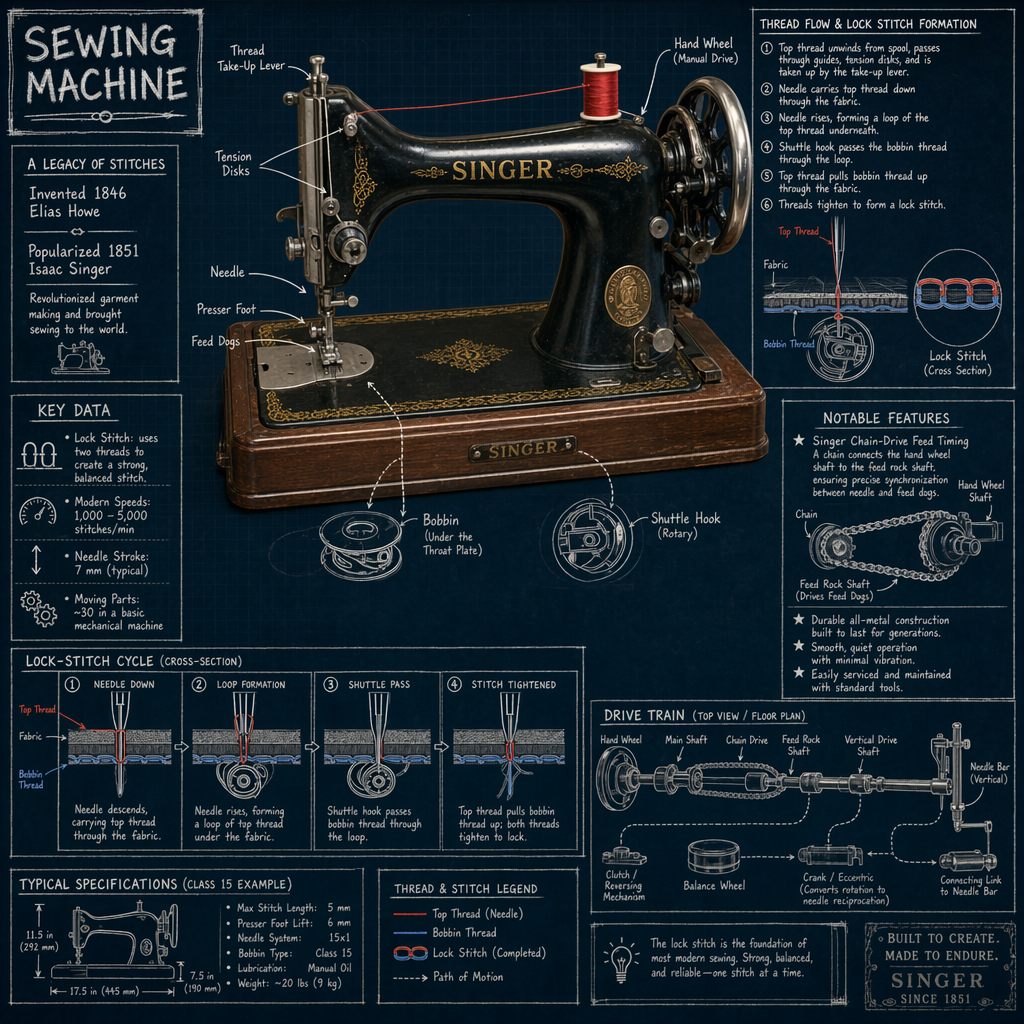

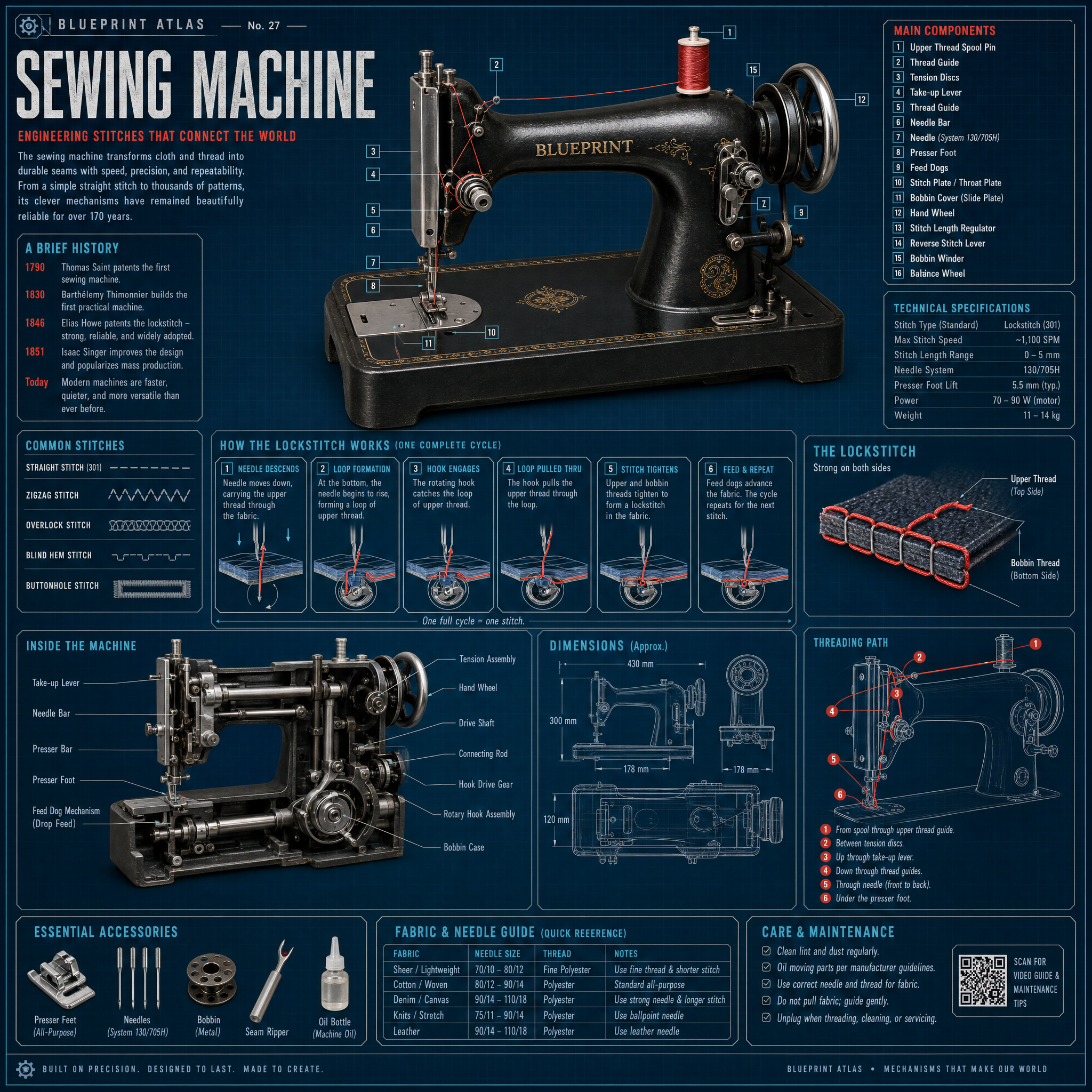

Two threads — top and bobbin — interlock inside the fabric on every stroke. A shuttle hook loops the upper thread around the lower one in perfect timing with the needle, repeated thousands of times a minute.

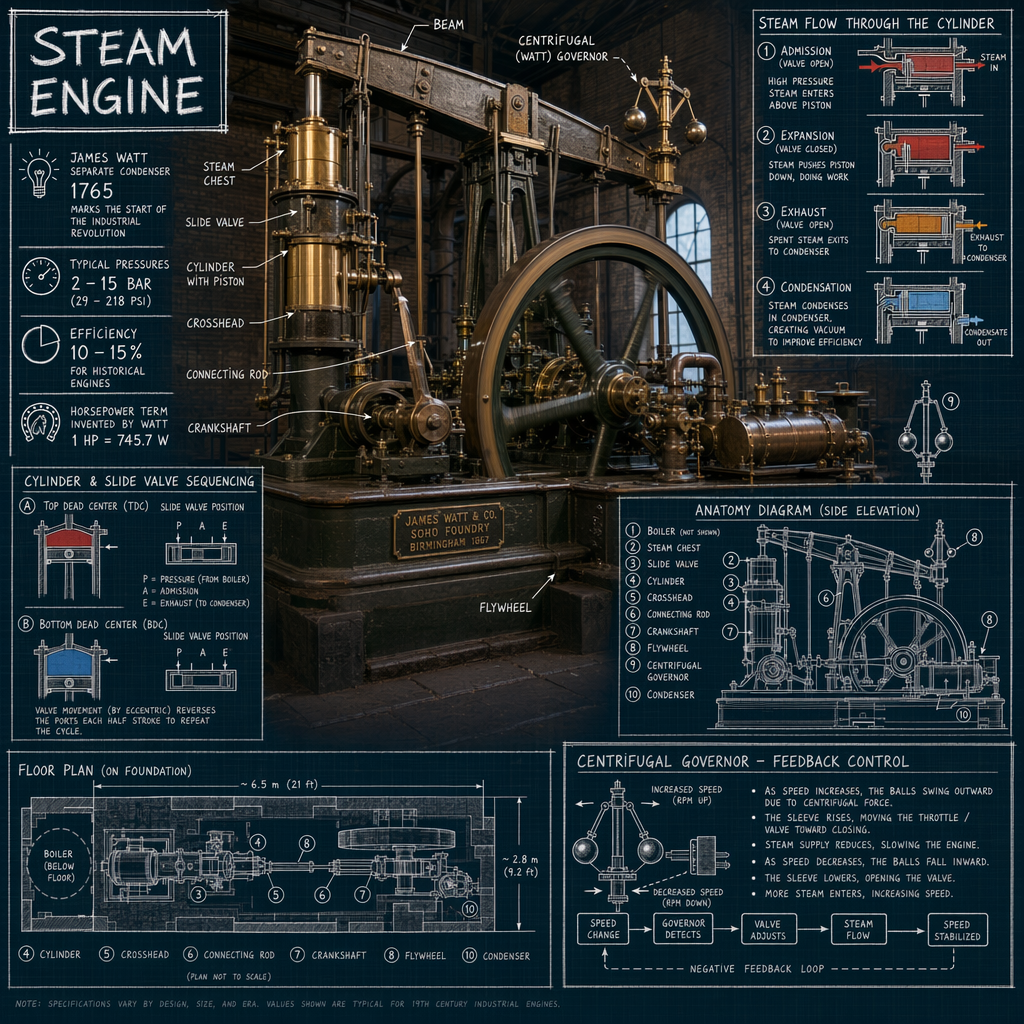

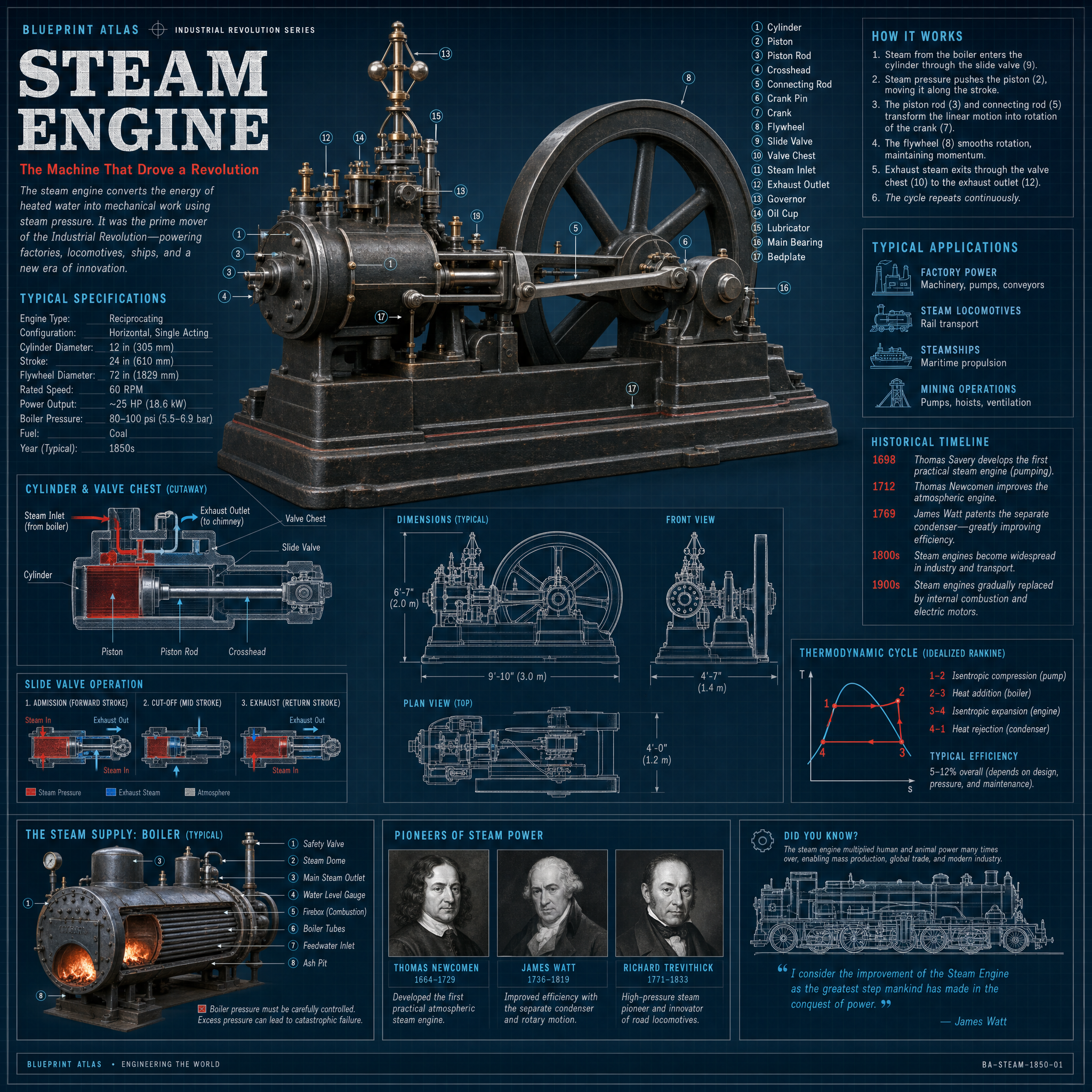

High-pressure steam pushes a piston; a slide valve alternates the admission side every stroke; a flywheel smooths the motion; a centrifugal governor regulates the speed. A closed loop in cast iron.

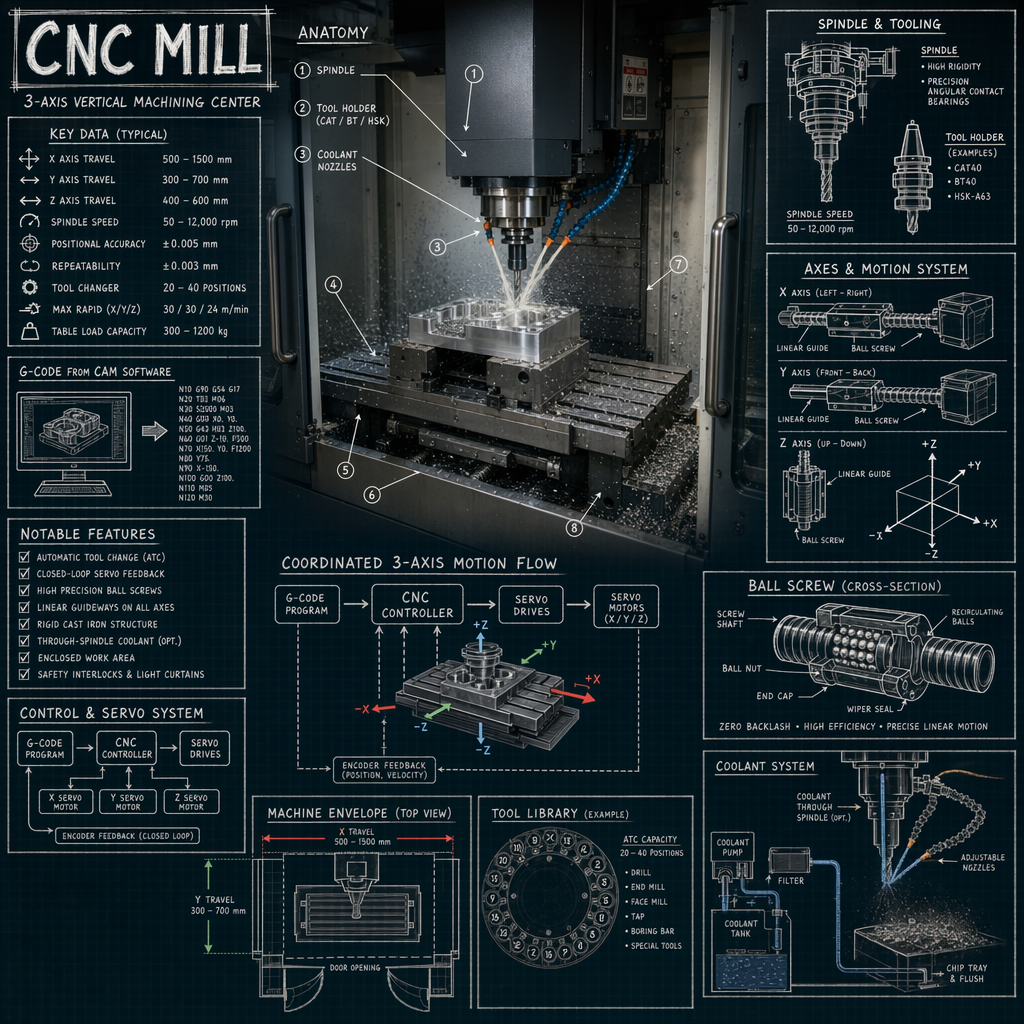

G-code files from CAM software drive three servo axes simultaneously. Ballscrews turn rotational motion into backlash-free linear motion; a closed encoder loop keeps every move to within 5 microns.

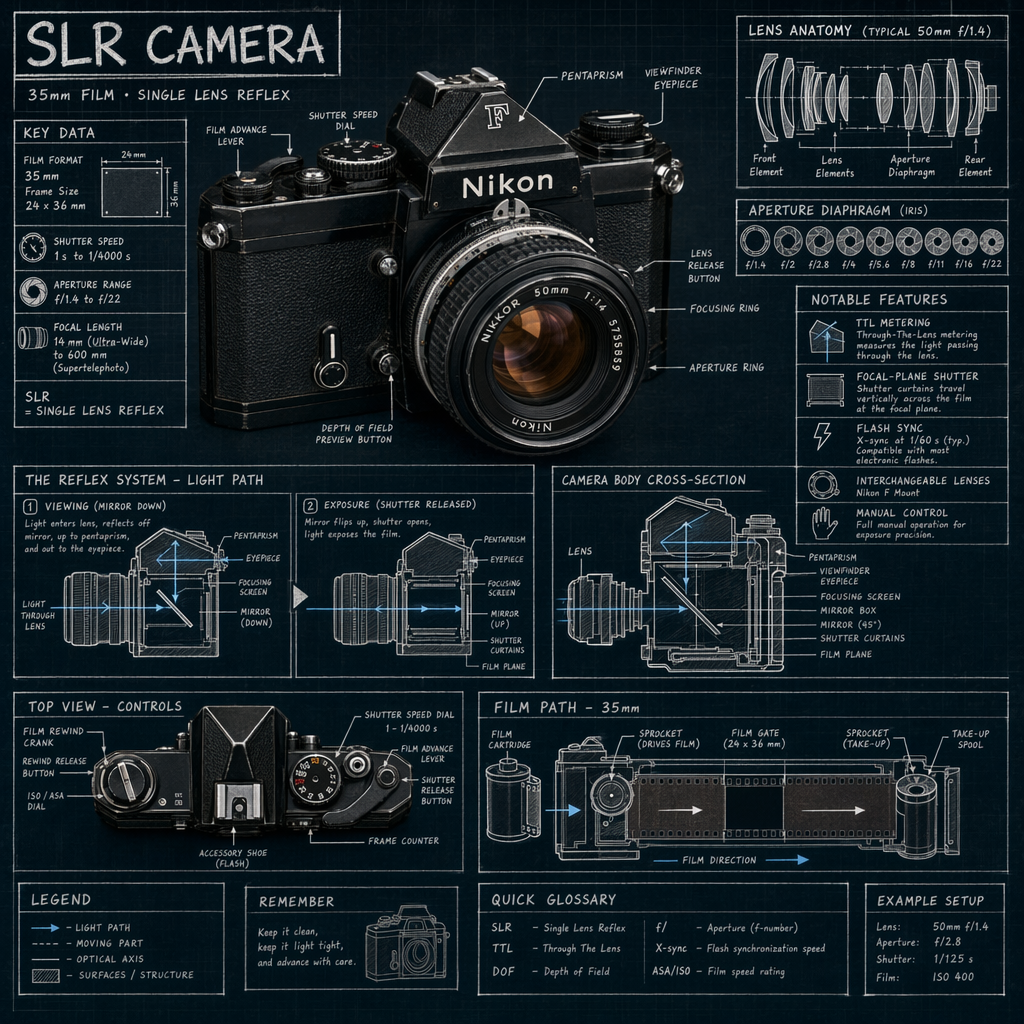

A hinged mirror bounces the image into a pentaprism, then into your eye — exactly what the film will see. Press the shutter and the mirror flips up, the focal-plane curtain opens, and that same image lands on silver halide.

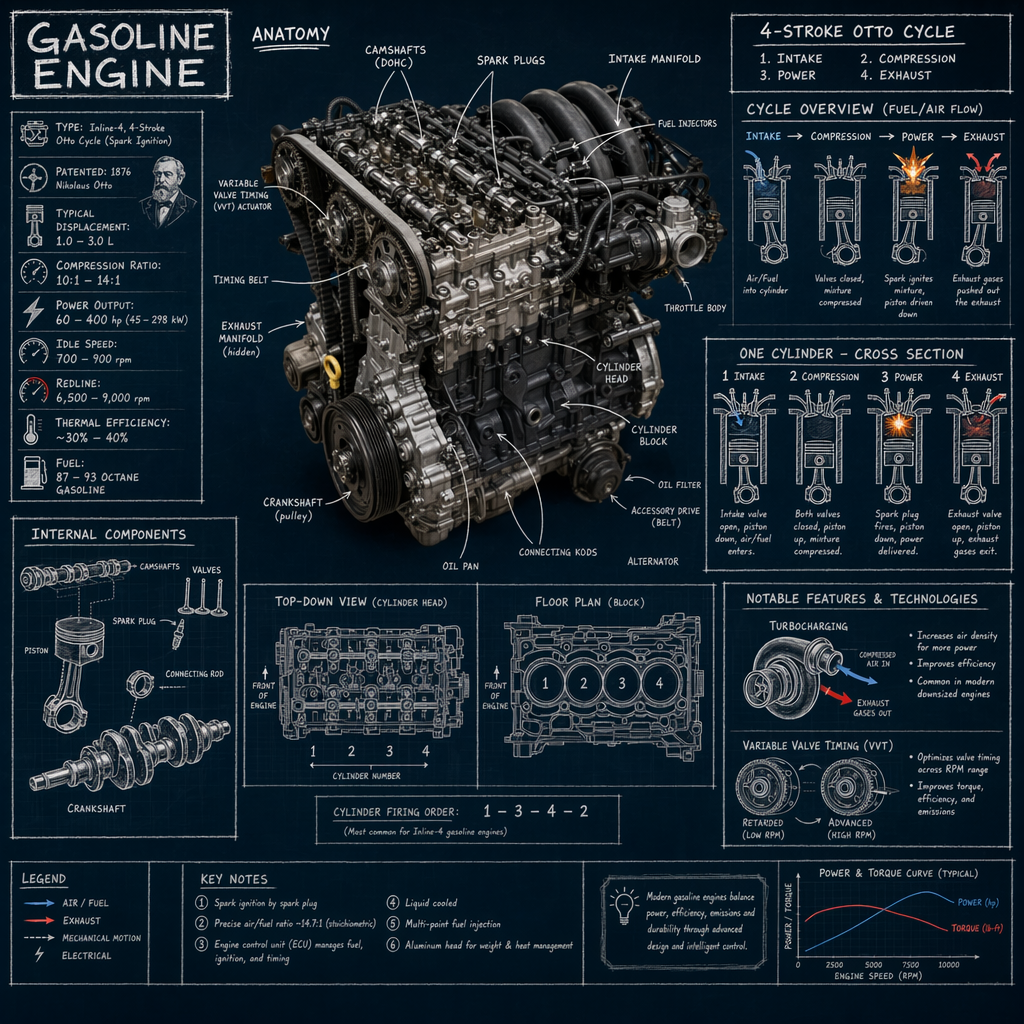

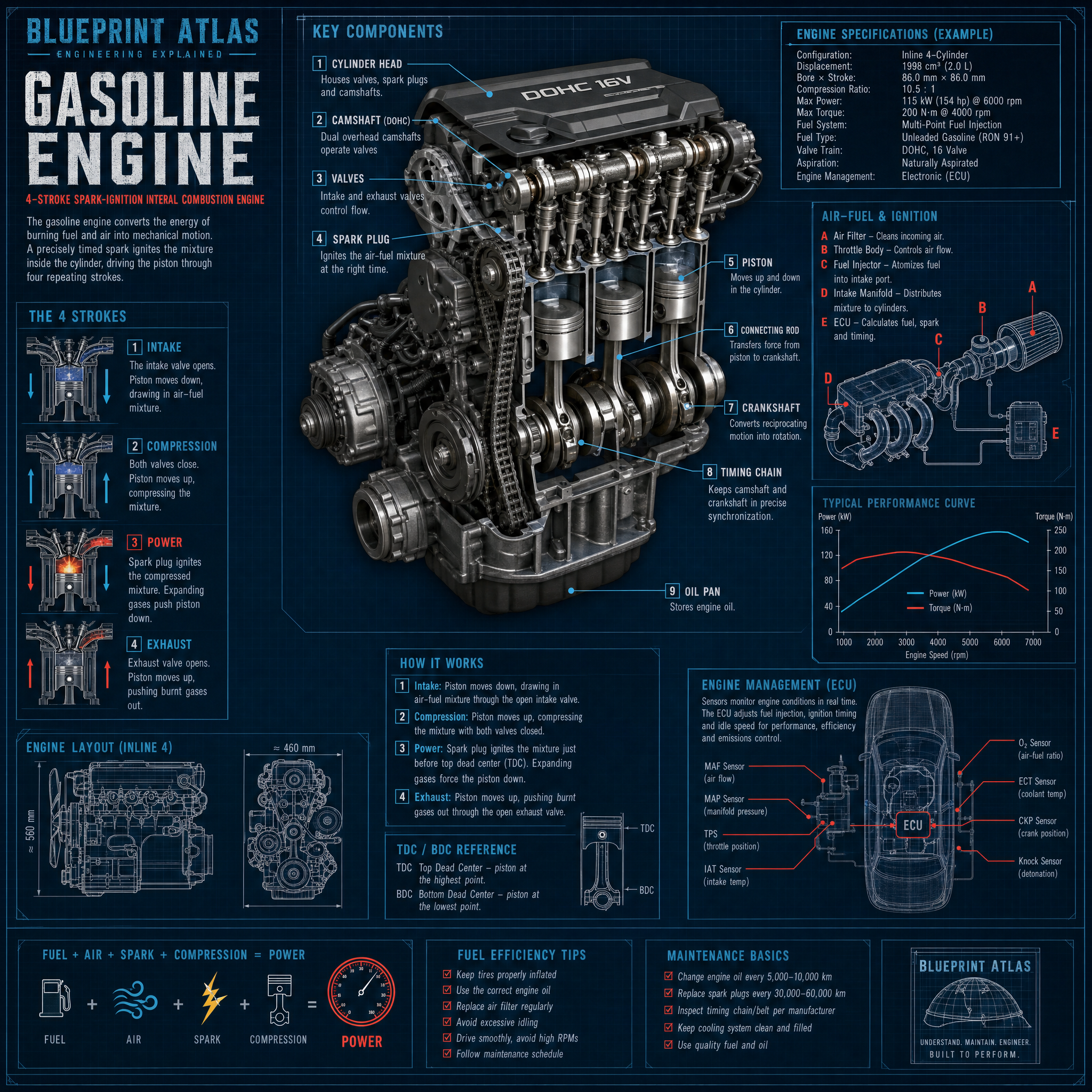

Intake, compression, power, exhaust — four strokes of a piston per one explosion of fuel. Overhead camshafts time the valves; an electronic injector meters the fuel; a spark plug lights the mixture on cue.

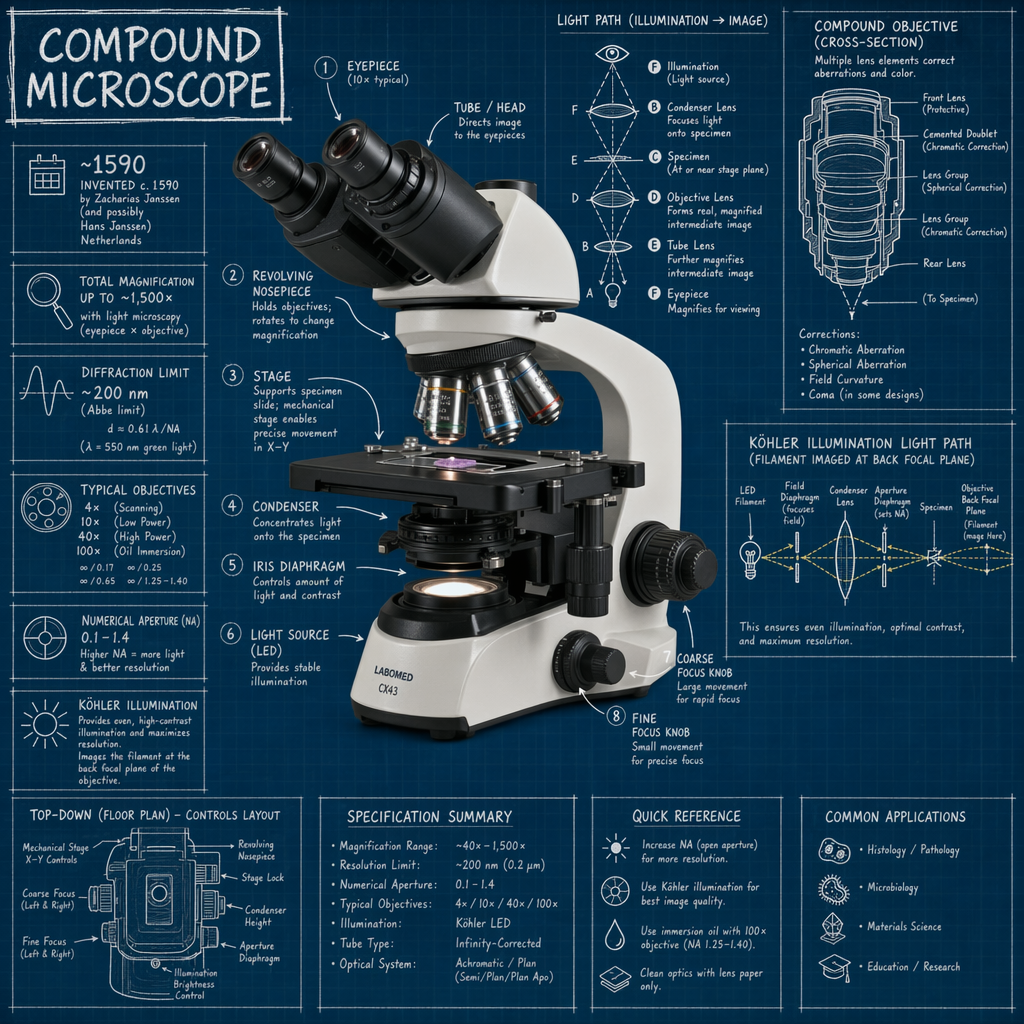

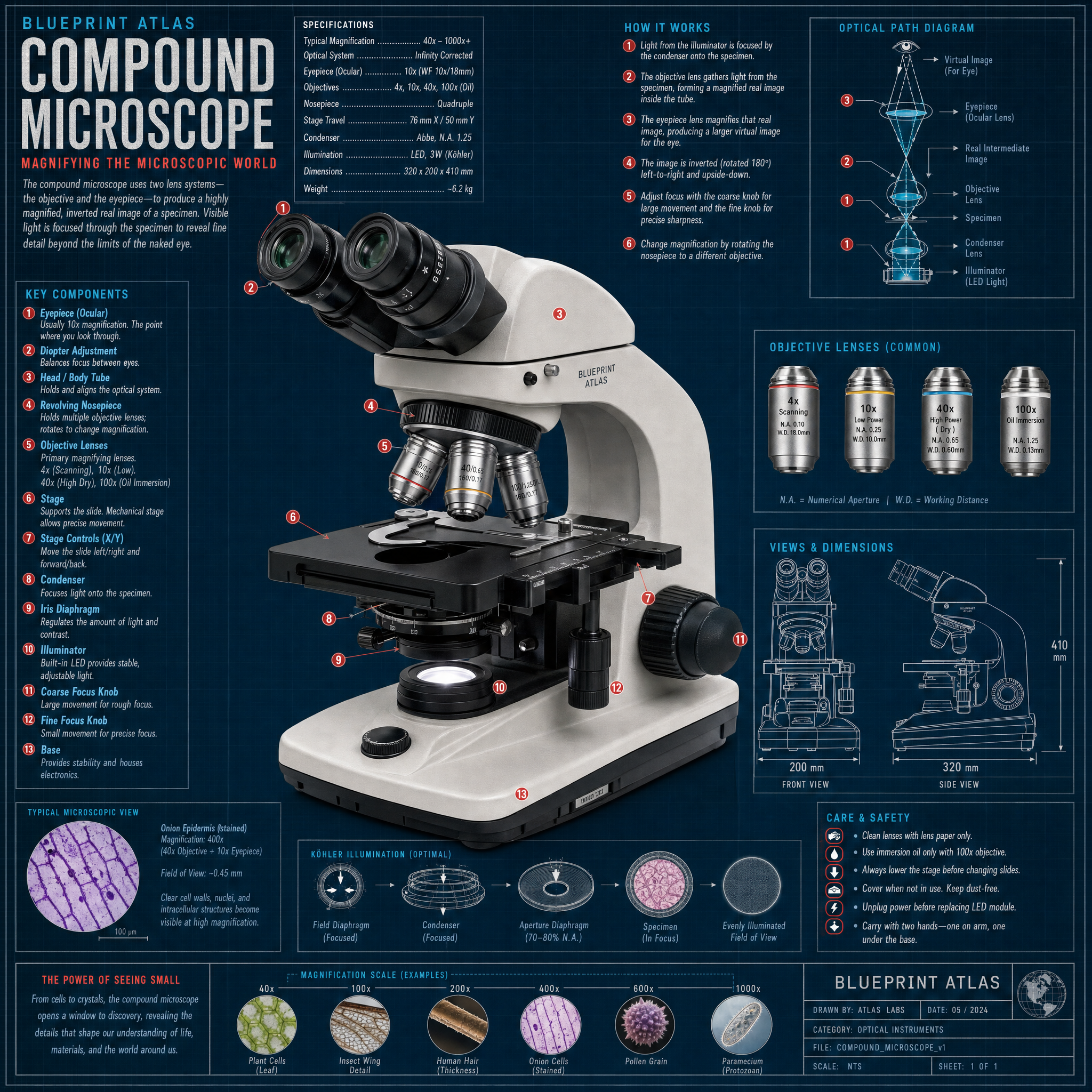

Two lens systems in series — an objective that forms a magnified real image of the specimen, and an eyepiece that magnifies that image again. Köhler illumination guarantees an evenly lit field.

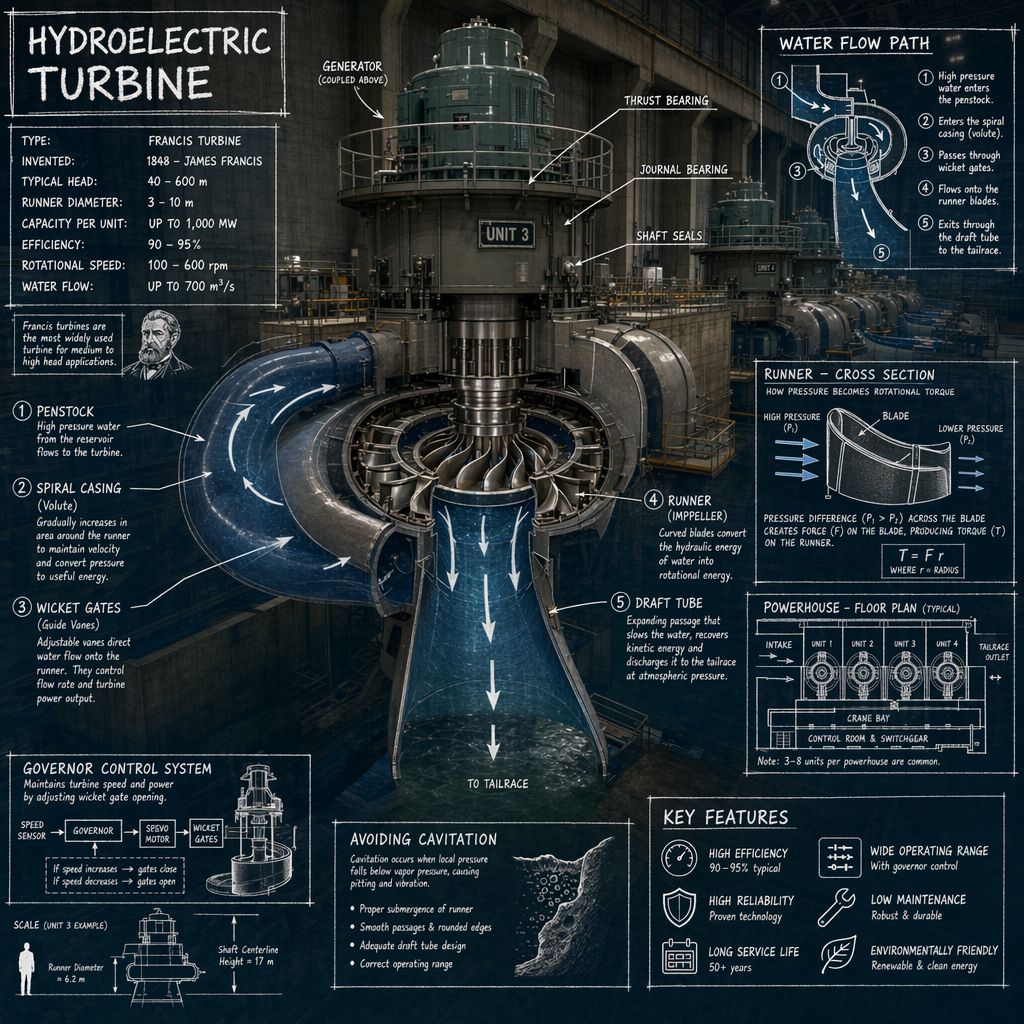

Water from hundreds of metres above is funneled through a spiral casing onto curved runner blades. Wicket gates modulate the flow; a coupled generator above converts the rotation into electricity at grid frequency.

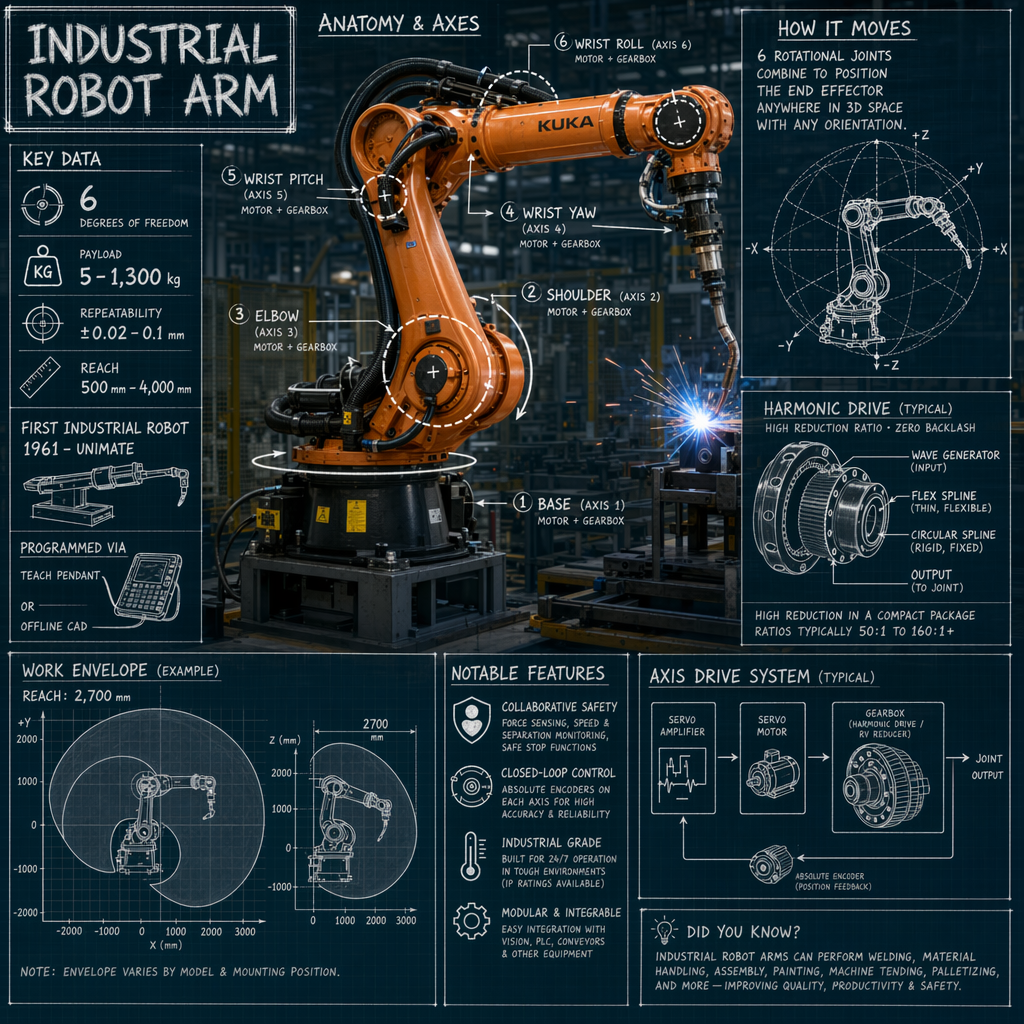

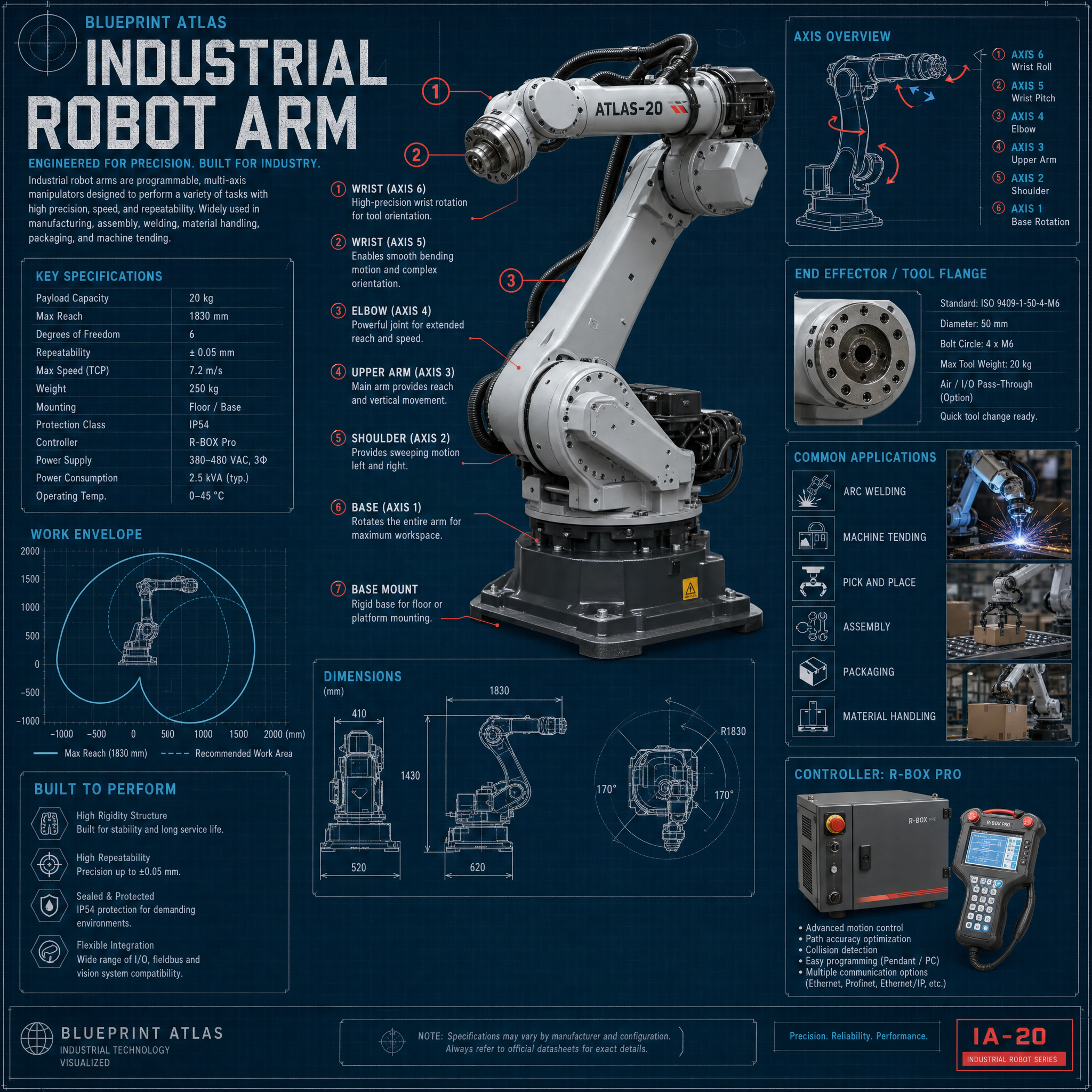

Six rotational joints, each with a harmonic-drive reducer and encoder, combine to place the end effector at any point in 3-D space with any orientation. A factory arm executes the same weld a million times without drift.
